Product name AntiVertigo
Type Mesh panel gratings
Material Galvanised steel
Dimensions (l x w x d) 286x1200 and 320x1200mm




AntiVertigo gratings are designed for suspended flooring, high-level walkways and fire escapes. The unique design provides a double-skin grating that permits free air-flow and drainage but provides complete screening from both above and below.

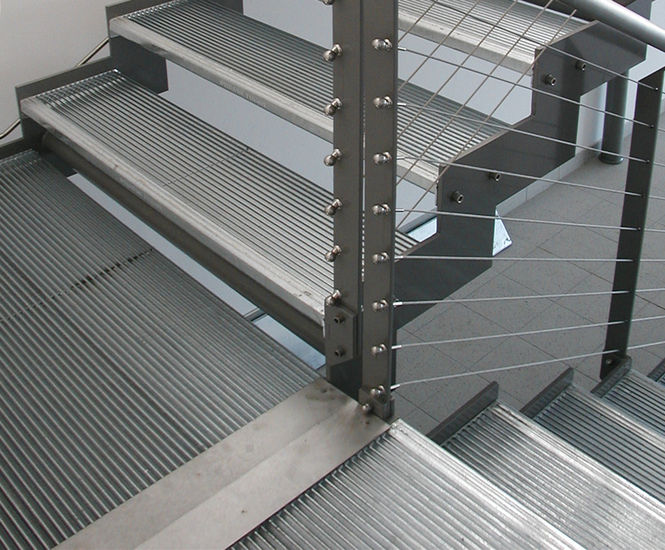

AntiVertigo is manufactured as stair treads with an integrated nosing or as flooring planks for landings or walkways. Flooring panels are manufactured to a modular format so that they can be combined through a neat interlocking of the framing bar without any lateral fixing to create a continuous surface.

Materials

In addition to steel S235R UNI EN 10025:2005, AntiVertigo is available in stainless steel AISI Type 304.

Key features

  • Transparency: 100% visual screening from any angle of observation
  • Heel-proof: 12mm space between the bearing bars
  • Anti-ice: virtually no surface where ice can form or be retained
  • Anti-slip: in compliance with DIN 51130 (06/2004) – R10 CLASS
  • Components: profiled bearing bars 1.8mm thick; single round transverse bar Ø 6mm
  • Loading: 6.3kN per sqm UDL up to a 1500mm span


AntiVertigo gratings are designed for suspended flooring, high-level walkways and fire escapes. The unique design provides a double-skin grating that permits free air-flow and drainage but provides complete screening from both above and below.

AntiVertigo is manufactured as stair treads with an integrated nosing or as flooring planks for landings or walkways. Flooring panels are manufactured to a modular format so that they can be combined through a neat interlocking of the framing bar without any lateral fixing to create a continuous surface.

Materials

In addition to steel S235R UNI EN 10025:2005, AntiVertigo is available in stainless steel AISI Type 304.

Key features

  • Transparency: 100% visual screening from any angle of observation
  • Heel-proof: 12mm space between the bearing bars
  • Anti-ice: virtually no surface where ice can form or be retained
  • Anti-slip: in compliance with DIN 51130 (06/2004) – R10 CLASS
  • Components: profiled bearing bars 1.8mm thick; single round transverse bar Ø 6mm
  • Loading: 6.3kN per sqm UDL up to a 1500mm span
