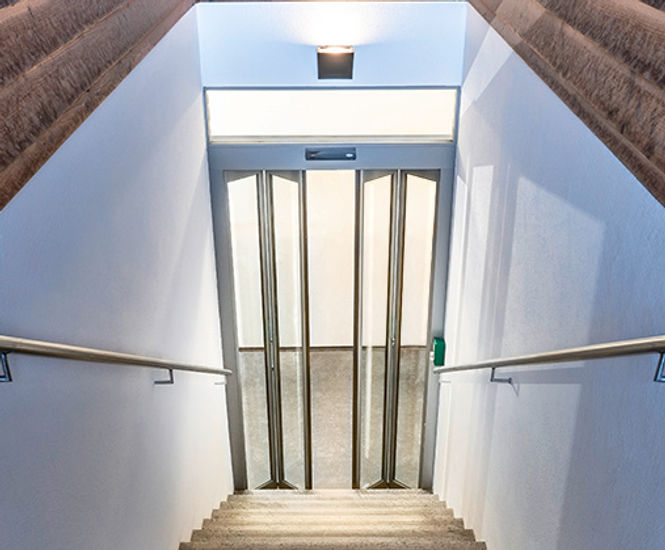

TORMAX T4 Series Top folding door systems are compact automatic folding doors made from aluminium profiles, designed for areas with limited space where sliding or swing doors are not suitable. Suitable for retrofitting, these doors accommodate various glass thicknesses and integrate with building management systems.

This ready-to-install solution has prefabricated doors made from well fitting profiles.

The aluminium profiles cannot trap nor crush limbs or people and the integrated lip seals ensure a high level of safety and guard against drafts.

  • Automatic folding door system for space-saving access solutions

  • Made from specially shaped aluminium profiles with integrated lip seals

  • Supports glass thicknesses from 8 mm toughened safety glass to 16 mm insulating glazing

  • Prefabricated for quick installation and minimal site work

  • Contact-free switch compatibility for barrier-free access

  • Can be programmed with extended opening times

  • Integrates with building automation systems

Applications

  • Shops with narrow entrances

  • Small businesses

  • Filling station convenience stores

  • Historic buildings

  • Retrofit projects and renovations

  • Urban locations with limited space

Dimensions

Opening width 800–2000 mm

Minimum built-in width 1060–2260 mm

Materials

Aluminium profiles

Options and variations

Supports glass thicknesses from 8 mm to 16 mm

Installation

Supplied prefabricated for straightforward installation
