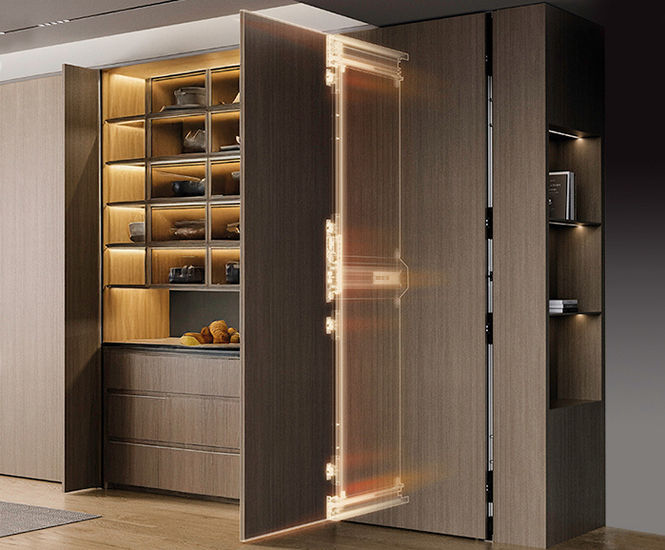

Pivora Pocket Door Sliding System is a single-leaf sliding pivot door kit for interior cabinets, allowing doors up to 35kg to retract fully into a cabinet as shallow as 380mm. Designed for timber doors 18–25mm thick, with door heights from 1000–2400mm and widths from 300–700mm. Push-to-open and soft-close mechanisms enable smooth, quiet operation and a flush, modern finish.

  • Single-door sliding pivot system for cabinets and furniture
  • Push-to-open and soft-close for easy, quiet use
  • Adjustable hinges with front-access tension control
  • Suitable for bespoke projects, cut to size on site
  • Quick installation with included fixings and invisible hinges
  • Brush cover strip hides mechanism for a clean look

Applications

  • Kitchens, wardrobes, offices, and drinks units where a flush, space-saving door is required

Dimensions

Door height 1000–2400mm

Door width 300–700mm

Door thickness 18–25mm

Cabinet depth 380–700mm

Max door weight 35kg

Installation

Kit includes screws, spanner, and hex keys

Quick and easy to install

Adjustable system for on-site fine-tuning

Options and variations

Handing options available

Technical support

Door weight calculator and downloadable installation manual available
