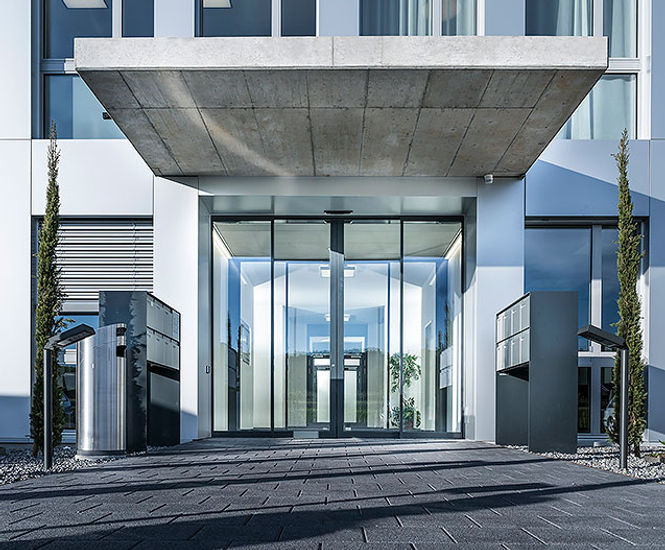

TORMAX T2 contour therm secure is an automatic sliding door system made for secure and energy-efficient entrances. Certified to resistance class RC 2, it uses a slim, thermally separated aluminium profile and multipoint locking for burglary protection. Suitable for high-traffic commercial settings, it balances security, insulation, and modern design.

  • Automatic sliding door system with certified burglary protection and thermal insulation

  • Thermally separated lightweight profile reduces heat loss and improves energy efficiency

  • Multipoint locking system with manual or electromechanical release for added security

  • Quiet, low-maintenance operation with gearless synchronous motor and long service life

  • Slender profile supports modern architectural aesthetics

  • Programmable microprocessor control with six operating modes and diagnostic functions

  • Options for emergency opening and escape routes

  • Certified burglary protection to resistance class RC 2

  • Proven TORMAX iMotion drive technology

  • Special options for rescue and escape routes (RER)

Applications

  • Retail entrances

  • Hotels

  • Office buildings

  • Commercial properties

  • Public buildings

  • Entrances requiring certified burglary protection

Dimensions

Door opening width: 700–3000 mm

Passage height: up to 3000 mm

Maximum door leaf weight: 1 x 200 kg or 2 x 180 kg

Maximum door leaf weight (escape route): 1 x 150 kg or 2 x 130 kg

Profile thickness: 40 mm

Glass thickness: 32 mm (insulating glazing)

Construction height: 150 mm

Performance

Certified burglary protection: RC 2 (EN 1627)

Insulating safety glass: P4A (EN 356)

Maintenance-free motor

Multiple lever-out protection with lateral interlock

Materials

Thermally separated aluminium profile

Insulating safety glass

Options and variations

Manual or electromechanical multipoint locking

Electromechanical emergency opening (escape route)

Battery module for emergency operation

Additional control modules for inputs, outputs, and networking
