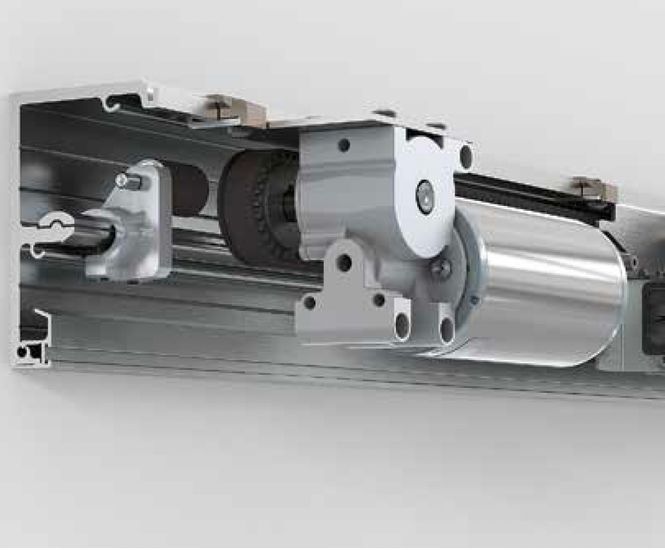

TORMAX 2203 is a slender, compact and unobtrusive sliding door drive with a drive height of only 100mm. It is easy to install and integrates harmoniously into both classical and modern architecture.

It runs on the well-proven motor technology of TORMAX 2201 and uses cutting-edge power electronics that meet the latest standards and directives.

Applications

  • Architecturally-demanding internal and external pedestrian passageways

  • Linear doors with 1 or 2 leaves

  • Telescopic doors for narrow passageways

Technical data

  • Cross section header profile: 100 (h) × 142mm (d)

  • Maximum opening width: 3800mm 4-leaf

  • Maximum door leaf weight: 1 × 130kg / 2 × 120kg

  • Opening / closing speed: 10-80cm/s adjustable

  • Smooth door leaf movements

Drive unit data

  • Electromechanical sliding door drive

  • Optional holding brake

  • Modular, programmable MCU42 control system with extensive monitoring and diagnostic functions

  • Durability: 2 million cycles, TüV certified, with 4000 cycles per day

Functionality

  • 6 operating modes:
    - automatic
    - reduced opening width
    - exit
    - permanently open
    - off
    - manual operation

  • Adjustable opening and closing speeds

  • Adjustable hold-open times

  • Time or step control

  • 10 programmable inputs, of which 4 inputs for safety features, can be extended in modules

  • 3 programmable outputs, of which 1 testable output for safety features, can be extended in modules

  • Interfaces LIN, RS232

Safety features

  • Connection facilities for sensors

  • Monitored adjustable power limitation

  • Adjustable sensitivity when reversing

Accessories

  • Electromechanical lock

  • Key switch

  • Mechanical emergency opening (FR: CO48)

  • Battery module for emergency operation (GB: BS7036)

  • In- / output modules

Approvals

  • CE/EN 16005, TÜV certified

  • ANSI/CAN/UL 325, TÜV certified
