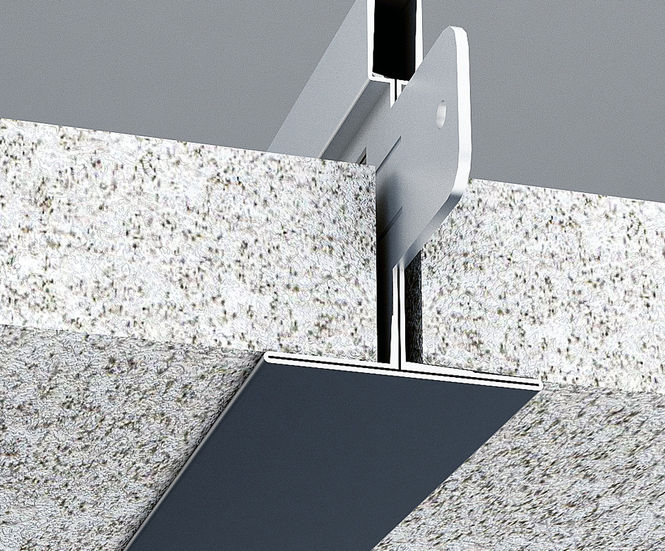

The TVS Lay-On exposed acoustic ceiling tile system is formed by allowing aluminium or galvanised steel panels to rest on a T15 or T24 exposed grid system. The main runners are visible and all panels are demountable without the need for any special tools, enabling fast and easy access to the ceiling void.

  • Panel type: 0.5-0.7mm aluminium or galvanised steel

  • Panel size:
    - 300 x 300mm
    - 600 x 600mm
    - 600 x 1200mm

  • Grid system: T15/24 exposed

  • Perforation: full perforated, 5-10cm bordered, non-perforated
    - Ø 1.0-1.5mm
    - Ø 1.8-2.5mm

  • Under acoustic felt: Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options

  • Certifications: CE

Applications

  • Transportation and airports

  • Educational

  • Healthcare

  • Hospitality and hotels

  • Commercial buildings

  • High-rise and offices

  • Financial and banking

  • Shopping centres

  • Residential
