RHEINZINK Angled Standing Seam - zinc facade and cladding panels system
RHEINZINK angled standing seam systems can be used to create architecturally-striking facades. Small and large surfaces can be emphasised or given striking segmentation patterns; can be installed vertically and horizontally using a selection of different panel lengths and widths; can be installed on cross joints or half-staggered cross seams
Click for full image

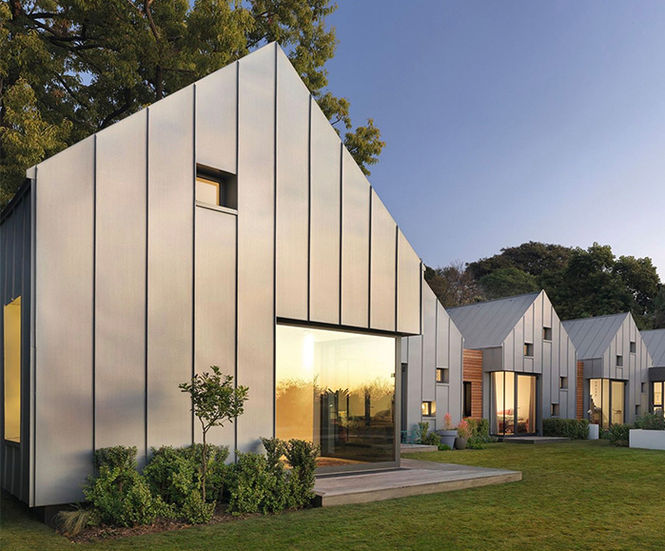

Buildings clad with vertical RHEINZINK angled standing seam system
RHEINZINK angled standing seam system is a metal cladding solution for facades and small surfaces, designed for flexible installation in vertical, horizontal, or diagonal layouts. Panels are made from zinc, with a seam height of approximately 25 mm and seam width of 12 mm, and can be supplied in various lengths and widths to suit different design requirements.
Metal cladding system for facades and architectural detailing
Panels can be installed vertically, horizontally, or diagonally
Suitable for both small and large surface areas
Accommodates tapered, concave, or convex surfaces
Low material stress due to single-side seam closure
Available with ready-made profiles or site-formed panels
Compatible with a wide range of accessories for seamless assembly
Applications
Facade cladding for buildings
Cladding of fascias, upstands, and parapets
Visual separation of roof and facade surfaces
Architectural detailing on small or segmented surfaces
Covering complex shapes such as tapered or curved areas
Dimensions
Panel width up to 430 mm
Coil width 500 mm
Seam height approximately 25 mm
Seam width approximately 12 mm
Materials
Made from zinc
Installation
Panels can be delivered with ready-made profiles or formed on site using mobile roll formers
