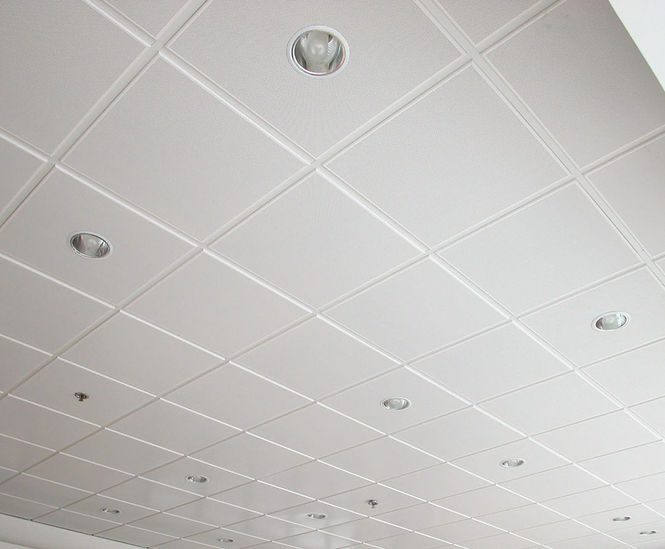

The TVS Metal Lay-In acoustic ceiling tile system has the following features and benefits:

  • Durable and washable polyester powder finish

  • Wide range of standard perforation patterns

  • Wide range of optional wooden patterns

  • Easy access for service maintenance

  • Robust and easy to clean

  • High sound absorption and sound attenuation

  • Environmentally-friendly and recyclable

Applications

  • Transportation and airports

  • Commercial buildings

  • Hi-rise buildings

  • Offices

  • Financial and banking

  • Malls

  • Residential

  • Educational

  • Healthcare

  • Hospitality and hotels

Specifications

  • Meet the requirements in accordance with ASTM C635, ASTM C636, ASTM E119, ASTM C423 and ASTM E84

  • Thickness: 0.6mm

  • Size: 600 x 600mm

  • Edge detail trim: Reveal (SL)

  • Noise Reduction Coefficient (NRC)
    - Plain: N/A Perforated: 0.45 – 0.9
    - Light Reflectance Coefficient (LR): based on the finish colour, up to LR-1

  • Standard colours: RAL 9016, RAL 9006 and RAL 9010; other colours are available upon request

  • Wooden patterns available upon request
