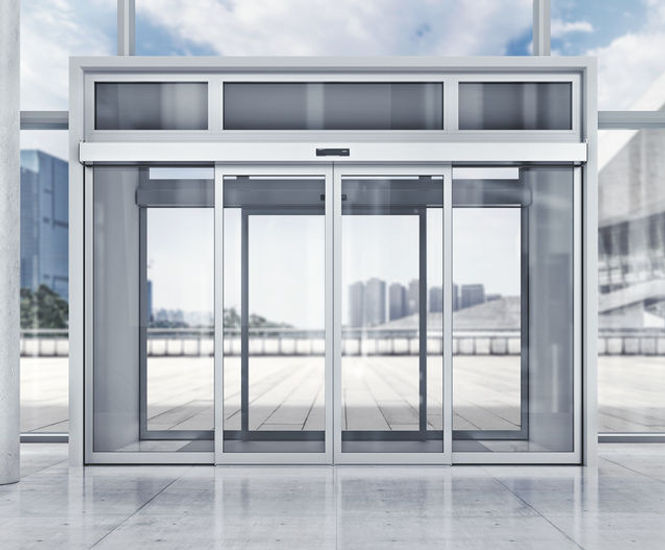

GEZE’s ECdrive T2 automatic sliding doors with a thermally-broken profile system – the GCprofile Therm - offers a solution to the growing need for net zero buildings and improving carbon footprint.

The GCprofile Therm accommodates up to 32mm glass thickness in either two-pane insulation glass with 2x ESG 6mm, UG value 1.0, or three-pane insulation glass with 3x ESG 4mm, UG value 0.8.

The profile system uses slim aluminium frames which reduce visible sightlines by approximately 30mm, giving designers greater ability to produce a clean design aesthetic while providing greater efficiency.

With increased performance for leaf weight of up to 140kg, the GCprofile Therm also boasts improved air tightness (compared to other ISO profile systems), better sound insulation and improved wet weather durability aided by its fit and an optional floor guide with drainage.

It can be combined with manual and motorised GEZE hook bolt locks, without losing thermal separation and the appearance of the system remains discreet, even with locking.

Key features

  • Slim design with a cover height of just 100mm for greater creative freedom

  • With double roller carriage and GCprofile Therm up to 140kg leaf weight

  • Connectivity via GEZE Cockpit

  • Efficient installation thanks to pre-drilled tracks and elongated holes

  • Full floor guide available for controlled diversion of rainwater

  • Integrated line-feeds make cable laying easier

  • Can be networked via CAN bus and integrated into building technology management systems

  • Independent error recognition and recording

  • Freely configurable inputs and outputs for different functions

  • Integrated battery for emergency opening and closing in the event of a power failure

  • Self-cleaning roller carriage reduces maintenance effort and costs

  • Various mechanical and electrical locks are optionally available

  • Service interface for easy maintenance

Technical Data


ECdrive T2-FR

For 1-leaf door systems

Yes

For 2-leaf door systems

Yes

Fine-framed insulating glass

Yes

MONO glass fine-framed

Yes

ESG clamping profile

Yes

Integrated all-glass system (IGG)

Yes

Framed leaf (on site)

Yes

Height

100 mm

Depth

190 mm

Leaf weight (max.) 1-leaf

120 kg

Leaf weight (max.) 1-leaf with GCprofile Therm and double roller carriage

140 kg

Leaf weight (max.) 2-leaf

120 kg

Leaf weight (max.) 2-leaf with GCprofile Therm and double roller carriage

140 kg

Opening width 1-leaf

700 mm - 3000 mm

Opening width 1-leaf with GCprofile Therm

1500 mm

Opening width 2-leaf

900 mm - 3000 mm

Opening width 2-leaf with GCprofile Therm

3000 mm

Service temperature

-15 - 50 °C

IP rating

IP20

Disconnection from mains

Main switch in the drive

Standard conformity

AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005
