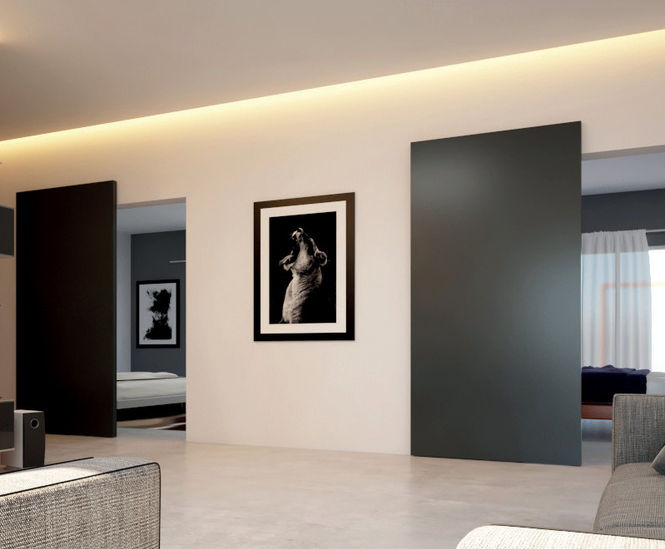

Invisible sliding door systems feature a low-profile mechanism and door capacities of up to 40 or 80kg. Suitable for both home and office spaces, the doors are top-hanging with a lower guide, and are fully adjustable with a soft-close mechanism.

Features

  • Sliding mechanism is invisible as fitted to back of door

  • Top-hung and bottom-rolling straight sliding system (weight evenly distributed between top and bottom rollers)

  • Suited to interior applications

  • Track is fixed to back of door and roller is fixed to wall

  • Suited to timber doors

  • Integrated soft close and open mechanism

  • Fully adjustable mechanism for optimum functionality

  • Best suited to hard flooring

Specification

  • Max door weight: 80kg

  • Min door thickness: 40mm

  • Max door width: 1150mm

  • Door width = door opening width + 253mm

  • Door height = door opening height + 100mm

Kit contents

  • 1 x aluminium top track profile (available in 1150mm lengths)

  • 1 x 4-wheel nylon wall roller

  • 2 x soft close mechanism

  • 1 x nylon floor guide

  • 1 x aluminium bottom guide profile

  • 2 x 2-wheeled bottom rolling castor

  • 2 x track end caps

  • 36 x fixing screws

  • 8 x wall plugs

  • Doors not included
