Product name Absolute Evo
Type Door openers / closers
Door type suitability Sliding doors
For use on Internal doors
Operation Manual
Installation Door surround mounted
Grade Residential

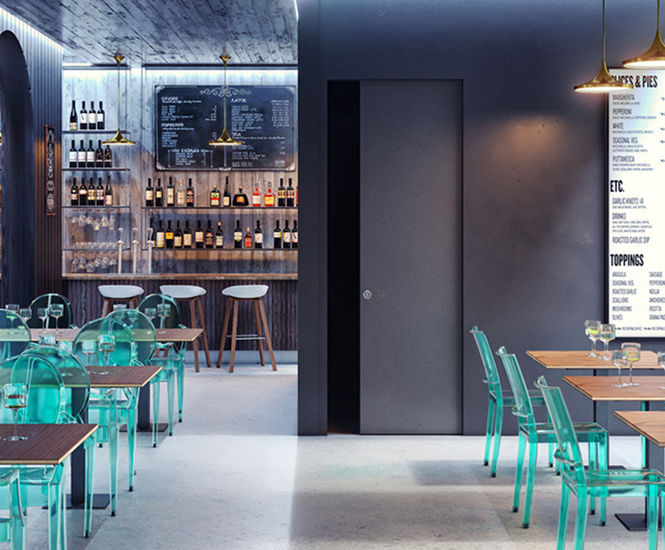

The Absolute Evo flush single pocket door kit is completely adjustable, smooth-rolling and easy to install.

Features

  • Top-hung straight sliding pocket door system
  • Plastered to the edge to give a flush finish
  • Optional soft close and open mechanism
  • Suited to interior applications
  • Track is soffit fixed
  • Suited to standard sized timber, metal or glass panel doors
  • Frameless glass doors can be fitted with the Glass Conversion Kit
  • Rollers tested to 100,000 cycles

Specification

  • Max door weight: 120kg
  • Max door weight c/w soft close: 80kg
  • Door thickness: 35-44mm
  • Up to 5mm vertical adjustment
  • Finished wall thickness: 100mm

Kit contents

  • 1 x top track
  • 2 x 4-wheeled nylon rollers c/w recessed fixing brackets
  • 1 x support framework
  • 12 x cross support studs
  • 1 door guide fin and screws
  • 76 x fixing screws
  • 1 x rubber buffer
  • 1 x track stop buffer
  • Doors not included


The Absolute Evo flush single pocket door kit is completely adjustable, smooth-rolling and easy to install.

Features

  • Top-hung straight sliding pocket door system
  • Plastered to the edge to give a flush finish
  • Optional soft close and open mechanism
  • Suited to interior applications
  • Track is soffit fixed
  • Suited to standard sized timber, metal or glass panel doors
  • Frameless glass doors can be fitted with the Glass Conversion Kit
  • Rollers tested to 100,000 cycles

Specification

  • Max door weight: 120kg
  • Max door weight c/w soft close: 80kg
  • Door thickness: 35-44mm
  • Up to 5mm vertical adjustment
  • Finished wall thickness: 100mm

Kit contents

  • 1 x top track
  • 2 x 4-wheeled nylon rollers c/w recessed fixing brackets
  • 1 x support framework
  • 12 x cross support studs
  • 1 door guide fin and screws
  • 76 x fixing screws
  • 1 x rubber buffer
  • 1 x track stop buffer
  • Doors not included





Downloads
  • Absolute Evo pocket door system
    Absolute Evo pocket door system
    2pp 1.69MB
    Download
