Sector Culture and heritage
Project type Refurbishment
Services provided Planning advice
Product / system manufacture
Product / system supply
Installation
Year completed 2019
Project location South East England
Client Wildernesse House
Contractor Timberwise UK
Products used Delta’s Type C drained waterproofing system



Context

A below-ground structural waterproofing solution was needed to create watertight living quarters in the basement of Wildernesse House, a Grade II listed Georgian House in Kent.

Delta Registered Installer Timberwise (UK) Ltd was specified to provide a waterproofing design to meet the requirements of BS 8102:2009 to achieve a dry, habitable space, defined as a grade 3 environment.

Project details

The basement to Wildernesse House is constructed from traditional stone and brick with the slab floor being cast of concrete.

On an initial site visit previous waterproofing installation had been evident, however the structure was damp from ingressing moisture.

Due to Wildernesse House being Grade II listed, a waterproofing system that was suitable for heritage structures was required.

Delta’s Type C drained system was selected as its sympathetic reversible ‘air gap’ technology would be suitable for Grade I and II heritage structures as the system is reversible.

Phase 1

Initially Timberwise’s technicians undertook repointing works. Over time the decay within Wildernesse House’s basement had allowed undesirable water ingress. All large holes found in the brickwork were sealed in preparation for the waterproofing system.

Prior to the installation of the Type C system, an application of Koster Polysil TG 500 was applied. Koster Polysil TG 500 is an anti-lime inhibiter which reduces the amount of free lime leaching into the cavity drainage system.

Following the curing of the Koster Polysil TG 500, 2 coats of Koster NB1 was applied. Koster NB1 is a mineral-coated waterproofing slurry which is ideal for sealing brickwork against pressurised water ingress.

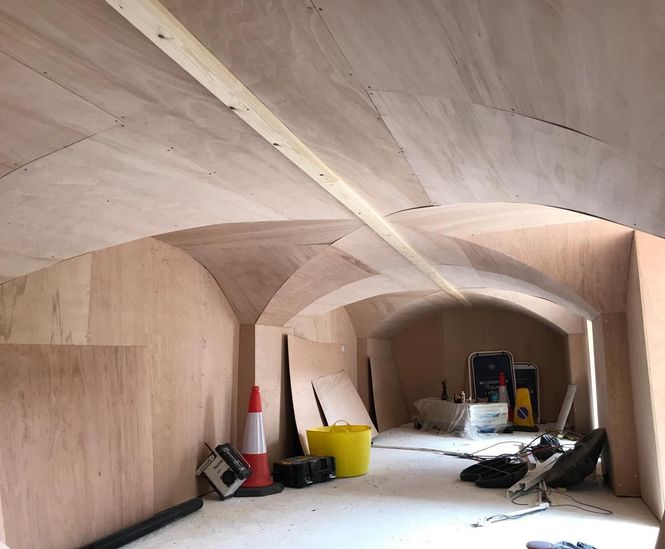

The Delta MS cavity drain system was installed to the walls and vaulted ceiling with perimeter drainage set into the basement slab. The all-important inspection ports were added at approximately 8 linear meter intervals to ensure that the drainage aspects would be fully maintainable and in accordance with BS 8102:2009.

Phase 2

Phase 2 of the project was to a different area of the basement. This area had earth-retaining walls which meant there was a lot of hydrostatic water pressure bearing against the structure.

As with Phase 1, repointing works were undertaken. Any large holes found in the pointing were sealed in preparation for the waterproofing system.

The substrates were then treated with Koster Polysil TG 500 anti-lime inhibitor, which also improves the water resistance of the basement structure by absorbing into the structure and locking in the free lime.

Two coats of Koster NB1 Grey were applied. Koster NB1 is suitable for waterproofing against ground moisture and for non-pressurised and pressurised water up to >13 bar.

Following the curing of Koster NB1 Grey, the Delta MS Type C cavity drain system was installed.

BS 8102:2009 is the British Standard that gives guidance on dealing with ground water assessment, drainage and associated risk assessments and buildings partly and fully below-ground as well as both deep and shallow basements.


Context

A below-ground structural waterproofing solution was needed to create watertight living quarters in the basement of Wildernesse House, a Grade II listed Georgian House in Kent.

Delta Registered Installer Timberwise (UK) Ltd was specified to provide a waterproofing design to meet the requirements of BS 8102:2009 to achieve a dry, habitable space, defined as a grade 3 environment.

Project details

The basement to Wildernesse House is constructed from traditional stone and brick with the slab floor being cast of concrete.

On an initial site visit previous waterproofing installation had been evident, however the structure was damp from ingressing moisture.

Due to Wildernesse House being Grade II listed, a waterproofing system that was suitable for heritage structures was required.

Delta’s Type C drained system was selected as its sympathetic reversible ‘air gap’ technology would be suitable for Grade I and II heritage structures as the system is reversible.

Phase 1

Initially Timberwise’s technicians undertook repointing works. Over time the decay within Wildernesse House’s basement had allowed undesirable water ingress. All large holes found in the brickwork were sealed in preparation for the waterproofing system.

Prior to the installation of the Type C system, an application of Koster Polysil TG 500 was applied. Koster Polysil TG 500 is an anti-lime inhibiter which reduces the amount of free lime leaching into the cavity drainage system.

Following the curing of the Koster Polysil TG 500, 2 coats of Koster NB1 was applied. Koster NB1 is a mineral-coated waterproofing slurry which is ideal for sealing brickwork against pressurised water ingress.

The Delta MS cavity drain system was installed to the walls and vaulted ceiling with perimeter drainage set into the basement slab. The all-important inspection ports were added at approximately 8 linear meter intervals to ensure that the drainage aspects would be fully maintainable and in accordance with BS 8102:2009.

Phase 2

Phase 2 of the project was to a different area of the basement. This area had earth-retaining walls which meant there was a lot of hydrostatic water pressure bearing against the structure.

As with Phase 1, repointing works were undertaken. Any large holes found in the pointing were sealed in preparation for the waterproofing system.

The substrates were then treated with Koster Polysil TG 500 anti-lime inhibitor, which also improves the water resistance of the basement structure by absorbing into the structure and locking in the free lime.

Two coats of Koster NB1 Grey were applied. Koster NB1 is suitable for waterproofing against ground moisture and for non-pressurised and pressurised water up to >13 bar.

Following the curing of Koster NB1 Grey, the Delta MS Type C cavity drain system was installed.

BS 8102:2009 is the British Standard that gives guidance on dealing with ground water assessment, drainage and associated risk assessments and buildings partly and fully below-ground as well as both deep and shallow basements.
