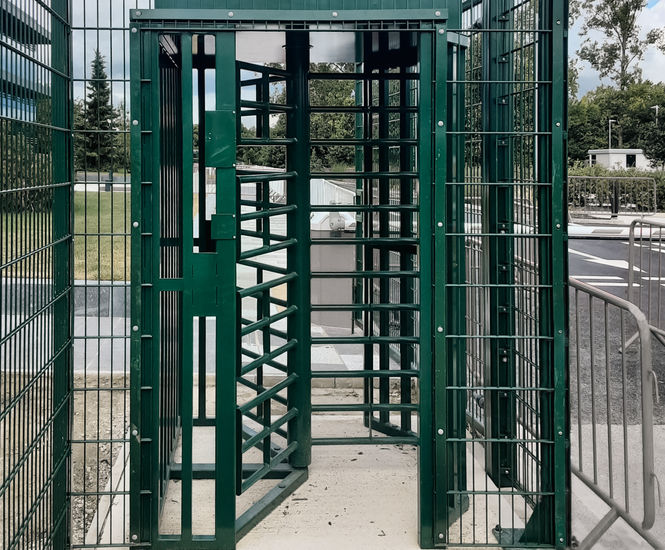

The Platinum Turnstile successfully resisted an intensive attack test programme in accordance with LPS 1175: Issue 8 to Security Rating B3; toolkit B for 3 minutes. This involved a series of attack tests each lasting at least 3 minutes using a wide array of hand tools and battery powered tools.

Available with a 120° rotor, 3-section walkway - the first LPS1175 security-rated turnstile on the market with 120° rotor.

Key features

  • Heavy-duty, high-security turnstile
  • Anti-return solenoid lock
  • Power locking bolt – provides turnstile lock down
  • Turnstile seeks next lock position
  • Designed and proven to withstand a considerable degree of physical attack
  • Extra high security with a full CPNI-approved fence-line integration and fixing
  • Robust steel 90° (4-section) or 120° (3-section) rotor
  • Reinforced high-security lid
  • Painted to clients' choice of RAL colour

Operation

  • AC interface and microprocessor control board
  • Status indicator with red and green light
  • Heavy-duty, vandal-resistant head mechanism
  • Fail secure – turnstile will remain secure during power failure

Manufacture and accreditation

  • BS EN 1627:2011 Requirements and classification for Pedestrian doorsets, windows, curtain walling, grilles and shutters. Burglar resistance.
  • LPS 1175: Issue 8 to Security Rating B3
  • Installed in many nuclear and utility sites nationally and internationally
  • Red Book Listing

Supplied as standard

  • LPS 1175 Platinum Turnstile Specifications B3
  • Height: 2387mm
  • Construction: high-strength steel blades

Options

Finish
Various options available, including: shotblasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. Client to advise RAL paint number. This process provides a 20-year corrosion protection system for exterior, industrial polluted inland sites to BS5493, 1977 (Revised 1984). Alternatively, acid dipped then hot galvanised. Any colour in the RAL colour range.

Other
Red/breen indicator lights
Manual release handle
LED walkway lighting

Controls

The programmable logic controller (PLC) with built-in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard.
