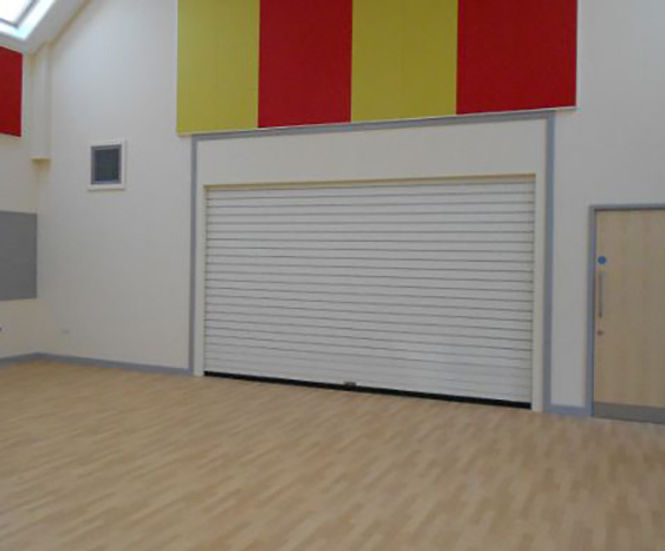

Fireroll EW roller shutters combine fire resistance with a high degree of radiation reduction.

The curtain infill insulation considerably reduces the risk of combustible materials igniting on the unexposed side when compared to single-skin fire shutters. When tested, the radiation transfer remained below the pass / fail criterion of 15kW/m2, protecting people in the vicinity.

Key attributes

  • Fire-rated and radiant heat reducing

  • Bespoke compact design

  • CE-marked

  • Multiple applications

Performance characteristics

  • Resistance to fire: EW90 or EW120 (internal and external)

  • Fire: tested to EN1634-1 all in accordance withEN13501- 2:2016, EN13241:2003 +A2:2016, EN16034:2014. EN15269-10

Applications

Can be used in any application where fire compartmentation is required. Ideally suited where radiated heat is considered an issue.

Specifications

Testing

  • Fire-tested to EN 1634-1 in both orientations

  • When face-fixed: rated EW90 or EW120 dependant on openings sizes in accordance with EN13501, EN13241, EN16034 and EN15269

  • CE marked

Size

  • 7000 (w) x 5000mm (h)

  • 12,000mm (w) x height dependent

Weight

  • Approx 50kg/m2; varies dependent on size and lath configuration

Curtain

  • 100mm-high flat section continuously interlocked galvanised steel laths

  • Laths are infilled with fire-resisting acoustic material

  • Steel end locks and bottom rail

Side guides

  • Vertical galvanised steel double rebate channels

  • Supplied with profiles for fixing to the structure

Finishes

  • Most parts galvanised as standard

  • Non-galvanised parts finished with primer paint

Operation

  • Electrically operated; manual operation in event of power loss

  • Automatically descends upon receipt of fire signal

  • Gravity failsafe closure

  • Safety brake complies with EN 12604 requirements

Options

  • Heat/smoke detectors

  • Audio visual warning

  • Polyester powder coated finish in a range of standard RAL colours

  • Grade 304 or 316 stainless steel
