Sector Housing, private
Project type Refurbishment
Services provided Product / system manufacture
Product / system supply
Installation
Year completed 2017
Project location London
Client Private
Consultant Acoustic Consultant: Hann Tucker
Contractor Sinclair Johnston
Products used Sylodyn High Performance PUR Elastomer



Context

TVS Acoustics, part of the TVS Group, was tasked with the isolation of a new luxury residential property in Mayfair from ground-borne noise and vibration from the nearby Jubilee line. A target re-radiated noise criterion of 30dB LAmax (slow) within the lower ground floor (the worst affected area) meant that a fully floated raft foundation was required with a target natural frequency of 10Hz.

Product supplied

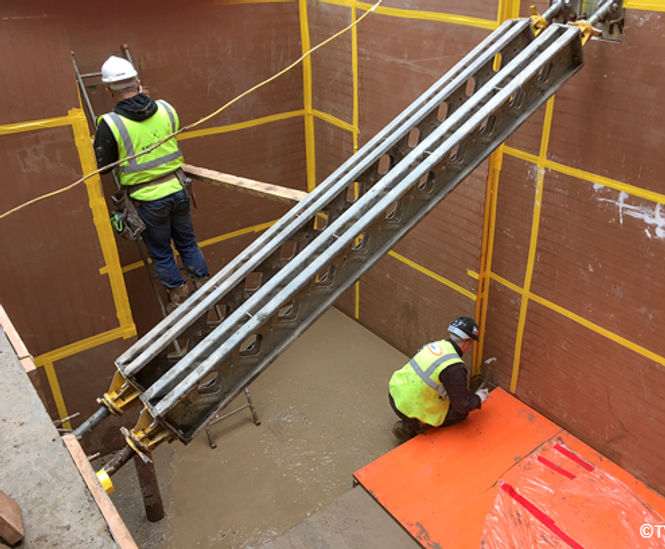

A combination of Sylodyn products in 50mm thickness across the base of the raft, and Sylomer materials in 37.5mm thickness up the basement walls, provided this high-performance solution, whilst bespoke treatments around service penetrations and at connections to adjacent buildings ensured that this was not compromised throughout the rest of the construction.

Outcome

Close work with the design team throughout the planning and specification process provided a solution that integrated seamlessly with the structure and waterproofing detail, whilst detailed layout plans, on-site training and supervision resulted in an easily installed system.


Context

TVS Acoustics, part of the TVS Group, was tasked with the isolation of a new luxury residential property in Mayfair from ground-borne noise and vibration from the nearby Jubilee line. A target re-radiated noise criterion of 30dB LAmax (slow) within the lower ground floor (the worst affected area) meant that a fully floated raft foundation was required with a target natural frequency of 10Hz.

Product supplied

A combination of Sylodyn products in 50mm thickness across the base of the raft, and Sylomer materials in 37.5mm thickness up the basement walls, provided this high-performance solution, whilst bespoke treatments around service penetrations and at connections to adjacent buildings ensured that this was not compromised throughout the rest of the construction.

Outcome

Close work with the design team throughout the planning and specification process provided a solution that integrated seamlessly with the structure and waterproofing detail, whilst detailed layout plans, on-site training and supervision resulted in an easily installed system.
