Acoustic floating floor for Cineworld auditorium
TVS partnered with B&K Systems to provide the acoustic floating floors within each auditorium of the new Cineworld Cinema in South Ruislip. Located on the site of the former Arla Dairies factory, the Citigrove development also included a number of restaurants, shops and apartments. In order to achieve Cineworld’s specification of NR30 within each
TVS RESi Floating Floor System TVS Acoustic Mastic to all auditoriums
Context
TVS partnered with B&K Systems to provide the acoustic floating floors within each auditorium of the new Cineworld Cinema in South Ruislip. Located on the site of the former Arla Dairies factory, the Citigrove development also included a number of restaurants, shops and apartments.
Product supplied

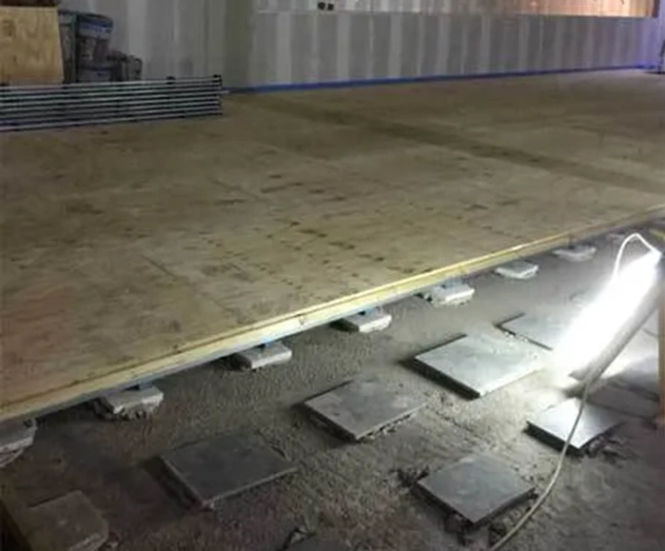

In order to achieve Cineworld’s specification of NR30 within each off the 11 auditoria, it was essential to install a floated concrete floor with a minimum air gap of 50mm, a minimum floated thickness of 100mm, and a maximum natural frequency of 14Hz. The TVS RESi Floating Floor System, incorporating Sylomer SR850 isolators with a natural frequency of 8Hz, comfortably met this specification.
Partnering with B&K Systems, TVS were able to offer the full design, supply and installation of the concrete floating floors, including the concrete and the flexible mastic finish around the perimeter of the floated slab.
