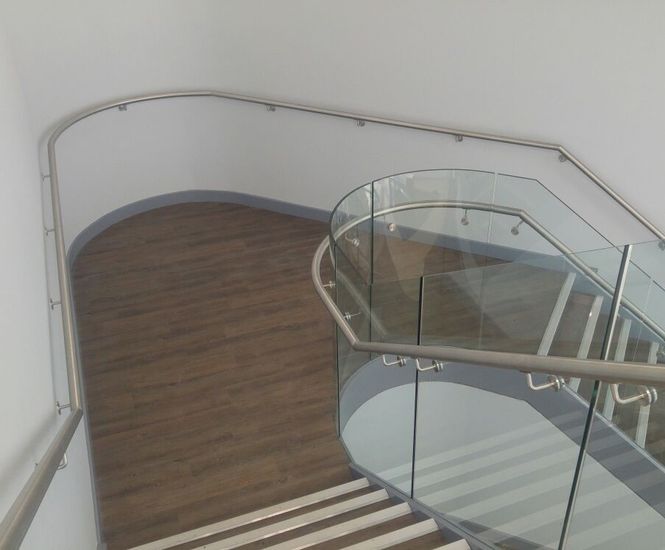

ASF Slim channel fixed glass balustrade is ideal for light to medium use applications, and can achieve a loading of 0.74kN.

  • Suitable for internal and external use.
  • Glass is 1100mm overall height as standard (giving approx 1m above ground when fitted). Other heights are available. Higher than 1100mm will affect loading capabilities.
  • Glass thicknesses are 12, 12.76, 13.52, 15, 16.76, 17.52, 19, 20.76 and 21.52mm.
  • Toughened glass is supplied as standard. Laminated options are available on schemes requiring this and for jobs requiring the loading capacity (NB: higher loadings may require a different shoe fitting).
  • Glass can be clear, smoked or bead blasted and curved, shaped, etched or tinted.
