An easy-to-fit traditional clay pantile with an open gauge design and a traditional s-curve profile with a thin leading edge.

  • Traditional s-curve profile with a thin leading edge

  • Easy and fast to install with an open gauge design

  • A low minimum pitch of 12.5°

  • Coverage of 15.3 tiles per m2 at maximum gauge

  • Available in Rustic Red and Natural Red

  • Comprehensive range of fittings and accessories

  • Can be installed in line with latest fixing requirements to BS 5534

Advances in Marley's clay tile technology means clay pantiles are very affordable. Combined with a range of fittings and universal accessories, Marley Eternit clay interlocking tiles a real option for roofing projects.

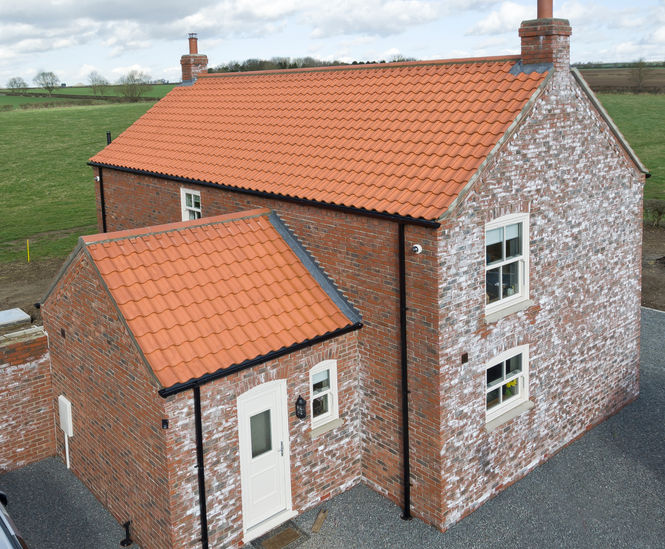

Lincoln combines the bold and beautiful curves of traditional clay pantiles with all the installation simplicity and speed required for today’s roofs. This means that Lincoln affords the rich appeal of natural, clay pantiled roofs, a thin leading edge and a beauty that matures over time.

As well as quick and easy installation, Lincoln can be installed to meet the latest fixing requirements of BS 5534 and the NHBC technical standards, without compromising tradition.

Technical data

  • Size of Tile 370mm x 247mm

  • Minimum Pitch 12.5º at 100mm headlap* 22.5º at 75mm headlap

  • Maximum Pitch 70º

  • Minimum Headlap 75mm (minimum)

  • Cover Width 222mm (nominal)

  • Covering Capacity 15.3 tiles/m² at 75mm headlap 16.65 tiles/m² at 100mm headlap

  • Weight of Tiling 43.0 kg/m² at 75mm headlap (approx.) 46.79 kg/m² at 100mm headlap (approx.)

  • Battens Required 3.4 lin.m/m² at 75mm headlap (net) 3.7 lin.m/m² at 100mm headlap (net)

  • Batten Size Recommended 38 x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)

  • 50 x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)

  • Tile Nails 38mm x 3.35mm aluminium clout head
