CDM Fibran XPS-500C - 50mm-deep thermal insulation board

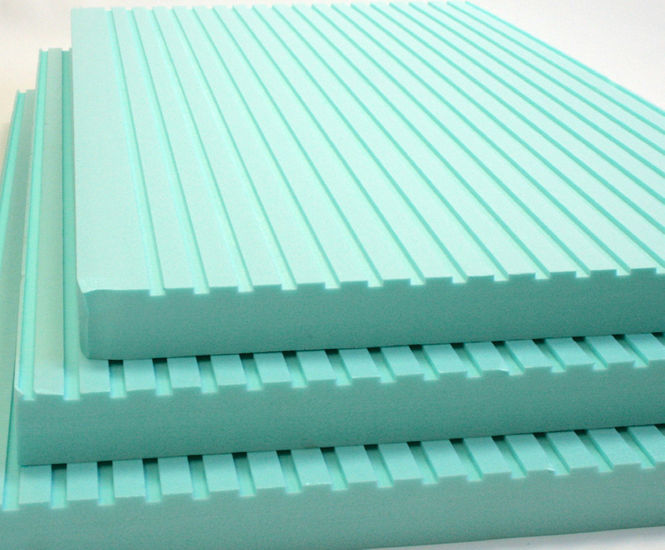

Newton CDM Fibran XPS-500C, produced exclusively for Newton Waterproofing, is a 50mm-deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS).

The insulation boards are used to form a 50mm spacer adjacent to the CDM BaseDrain and CDM FloorDrain drainage channels within the Newton CDM System cavity drain waterproofing system. Rated at 500 kPa, the boards feature specifically-designed slots to the underside that, in combination with the perimeter and spine drainage channels of the Newton CDM System, form a fully-drained supporting spacer below the floor drainage membrane.

CDM Fibran XPS-500C boards can also be used as a protection for Newton liquid-applied waterproofing membranes applied externally to new earth-retained structures or retained walls, offering protection, insulation and drainage within one product.

Key benefits

• Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity

• Closed cell structure with no connecting capillaries resulting in extremely high resistance to water absorption and diffusion of water vapour

• Capable of permanent submersion in water

• Fully inert when subjected to climatic variations

• High mechanical and compressive strength and high dimensional stability

• Contains no CFC or HCFCs

• Life expectancy is equivalent to the building in which it is installed (estimated 50 years)

• 100% recyclable

• Easy to transport, cut and apply

• Completely rot proof and does not develop any mould or other efflorescence

• No nutritional value for rodents, insects, etc

• Good resistance to acids, alkalines, aggressive ground containments and inorganic gases

Typical applications

• As the spacer below Newton cavity drain waterproofing floor membranes

• Protection of Newton liquid applied waterproofing membranes applied externally to retained walls

• Insulated support below HydroBond 403 Plus

• Parking decks and green roofs

• Full external envelope insulating of subterranean structures sited permanently within the water table

Suitable substrates

• Compacted, clean and level surfaces

• Basement concrete floor slabs and rafts

• Earth-retained walls of concrete, mortar or ICF

• Compacted blinding

Certification

Manufactured in accordance with EN 13164 – Thermal insulation products for buildings – Factory made products of extruded polystyrene (XPS)-specification.

Certified to ISO 14025 standard with an Environmental Product Declaration (EPD). This reports the full value chain from material extraction to the manufacturing of the product, usage and end of life, declaring the products environmental impact from a lifecycle perspective.

Technical data

*After 25 years
**When permanently and totally immersed in water for 25 years
***Calculated using nominal thickness of 45mm due to grooved surfaces
****Smooth surface
