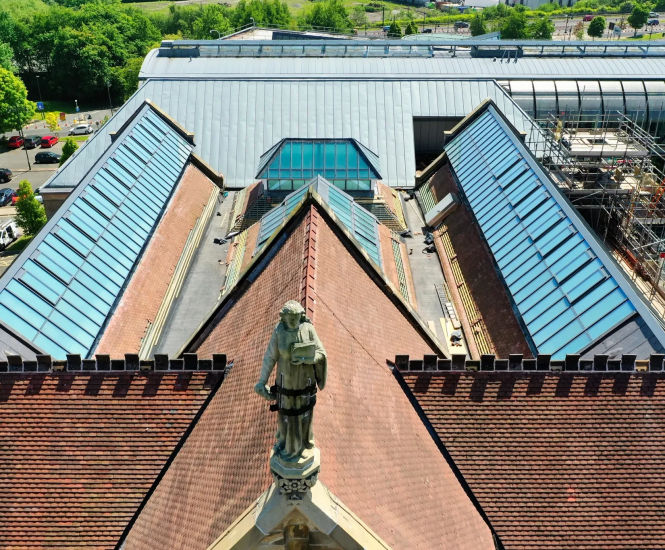

Thermally-broken aluminium-framed opening vents combine innovative design with robust performance, making them an ideal choice for various glazing applications that require effective ventilation and enhanced environmental control.

Designed to accommodate 28-36mm thick double- or triple glazed-units, these low-profile roof vents offer slender sightlines compared to other roof vents available, providing both aesthetic appeal and superior functionality.

They can be operated by a wide variety of manual, remote-controlled and electrical gearing systems, making them suitable for day-to-day ventilation and integration with a Building Management System (BMS).

Key features

  • Versatile installation: suitable for both sloping and vertical applications.

  • Optimal placement: typically installed at the top of the patent glazing in roof applications. However, they can also be positioned in the centre or lower parts of the glazing by using alternative top and bottom panel sections.

  • Stroke length: depending on the size of the opening vent and the gearing type used, the general maximum stroke length is around 400mm.

Sizes

  • Single push point gearing: max - 750 (w) x 1500mm (d)

  • Double push point gearing: max - 1000 (w) x 2000mm (d)
