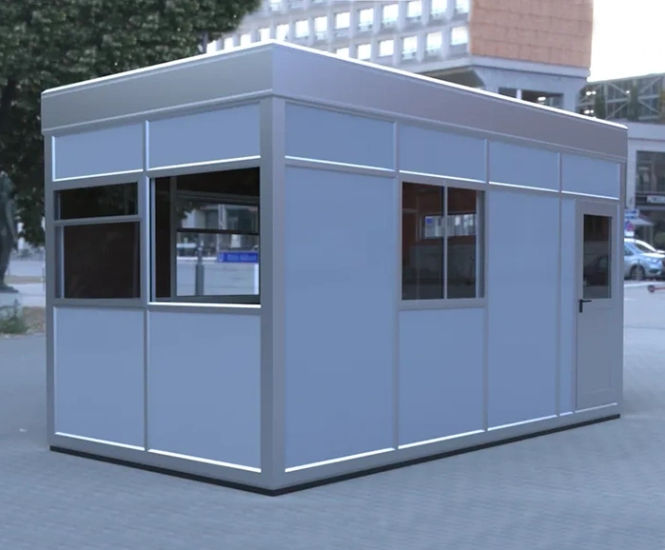

The Beacon modular building is a high-quality pre-assembled building system. It offers the well-established trusted features and benefits that have made the Beacon our customers’ go-to building system for their diverse and unique requirements. The new Beacon is perfectly suited for 24/7 working environments such as gatehouses, visitor receptions, toll booths, vehicle check-in kiosks, staff office accommodations, security checkpoints and control centres, plus many more applications.

The Beacon Modular Building system is assembled from a suite of thermally broken aluminium alloy extrusions, composite floor and wall panels, direct fixed glazing, and proprietary aluminium framed window and door systems. To complement the existing framework, a new aluminium fascia system has been designed and developed in conjunction with the introduction of a Structurally Insulated Panel (SIP) roof system, providing an improved level of thermal performance.

Beacon features a weather-resistant pre-finished steel external finish to the insulated composite wall panels, and all windows/doors will be double-glazed as standard. The external envelope is completed by an insulated composite floor panel supported on a preservative-treated timber plinth complete with vapour barrier to the underside.

Seventeen Sizes and Two Colours

Available in 17 standard building sizes from 2.44m x 1.22m through to 7.32m x 3.66m with colour options of Silver or Anthracite Grey finishes.

Excellent Levels of Insulation

Minimal heat loss in winter and heat gain in summer provide year-round low running costs for the building.

Structurally Qualified Design

Buildings can be delivered and offloaded as fully assembled modules to reduce construction schedules and relocated to suit site requirements.

Adaptable

16 wall panel configurations.

Optional Extras

A variety of interior and exterior extras are available, including electrical packages, worktops, cabinets, partitions, WC and welfare facilities.

Customisable

Alternative colour schemes are available subject to the availability of materials where additional costs may apply.

Dimensions

  • Width: Available widths from 2.44m to 3.66m and lengths up to 7.32m

  • Height: 2705mm

  • Weight: Ranges from 630kg to 2,900kg, depending on size and specification
