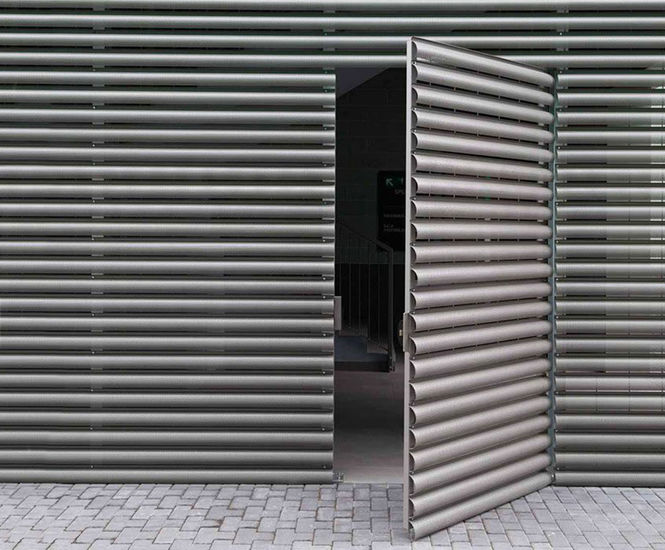

Corona is an innovative product for wall cladding applications which features direct fixing for easy installation. CoronaBrise is a variation which is made with multiple perforations to increase the passage of natural daylight.

The unusually generous scale of the half-round louvred profile creates a striking visual statement and makes it particularly suited to large scale projects where there is a requirement for visual screening and natural ventilation.

A practical method of fixing is achieved directly through the top flange of the louvre to the substructure or underlying steel support. Panels are manufactured without any framing bars and can therefore be stacked or joined together seamlessly for a continuous appearance.

Key features

  • Louvre Centres: 116.5mm

  • Gap between Louvres: 9mm

  • Round Bar: 4.5mmø at 200mm centres

  • Panel Depth: 45mm

  • Steel Gauge: 1.5mm thick

CoronaBrise has small perforations to allow for increased levels of daylight:

  • Hole Diameter: 4mm

  • Pitch Dimension: 8mm centre/centre

  • Pitch Configuration: 60 degrees staggered

  • Bridge: 4mm
