Thermally separated sliding door profile LR32THERM has a very narrow and compact design. The circumferential seals reduce the exchange of cold and warm air. This keeps costs down and protects the environment.

  • Visible width: 35 mm

  • with options: 70 mm

  • Base height: 85 mm

  • Profile depth: 40 mm

  • Glass thickness: 32 mm

  • Type of glazing: Insulating, double or triple

  • Sealing of the sliding door leaves: All-round, brushes and/or rubber seals

  • Safety distances: as per DIN 18650

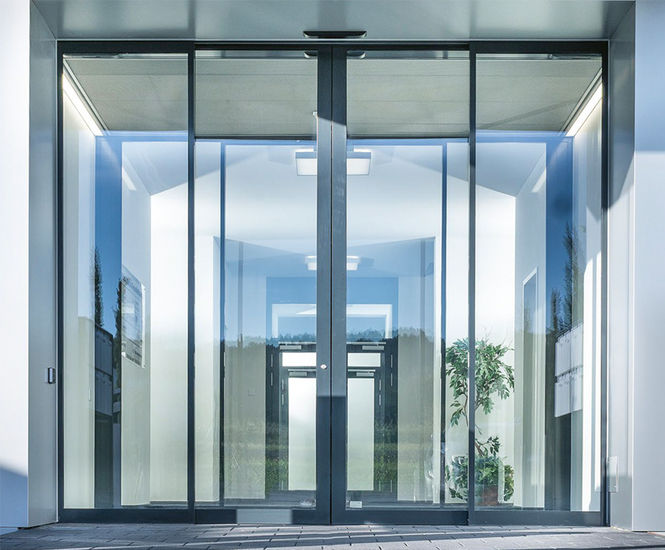

The LR 32THERM automatic sliding door profile from TORMAX is one of the slimmest frames on the market. It also benefits from having an extremely low thermal transmission co-efficient (Ud value). The aluminium profile delivers the right aesthetics to create a contemporary entrance whilst significantly contributing towards reduced internal heating costs.

The LR 32THERM profile is particulary suited to external entrance ways and can be combined with TORMAX advanced iMotion® sliding door drives to create sustainable yet reliable, low maintenance entrance solutions.

This visually lightweight profile meets both the sustainable demands of architects, as well as aesthetic expectations.

Optional Areas of Use

  • Fire and smoke doors

  • Rescue and escape routes

  • Due to special construction security doors with defined resistance class  (WK2 + WK3)

  • Corrosion-free and waterproof doors

  • Hermetic doors

  • All-glass doors

Additional Functions

  • Air-lock function: two coordinated door systems control access

  • Access control: controlled by a key, badge, video monitoring and biometric data

  • Hold-up closure: on pressing a button the door closes immediately  and without reversal

  • Building automation: incorporation into existing systems

Certification

The outstanding thermal insulation properties of the LR 32THERM profile have been certified by Bern University of Applied Sciences. It meets the standards required by ENEV2009 and also the safety standard DIN18650 and the new European equivalent EN16005.
