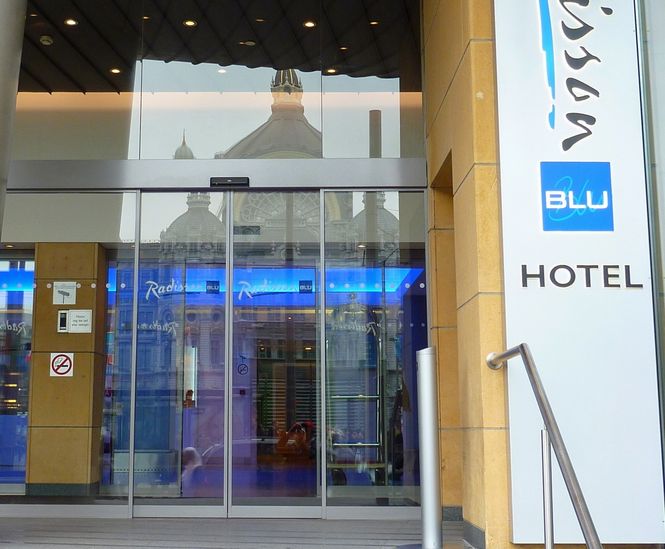

The iMotion® 2302 is an electromechanical sliding door drive with a gearless AC synchronous motor that provides almost noiseless door leaf movements. Specifying the iMotion® 2302 creates barrier-free, easy-to-use doors for all types of persons.

It is used for external and internal doors with heavy footfall, including in noise-sensitive areas, air lock or porch systems, and rescue and escape routes.

It can be used on linear doors with 1 or 2 sliding leaves, with or without side panels.

Properties

  • Elegant 150mm installation height, depth 166mm
  • Excellent reliability and low maintenance costs
  • Adjustable monitored power limit
  • Adjustable reversing sensitivity
  • Adjustable opening and closing speeds
  • Adjustable hold-open times

Technical data

  • Door opening widths: 700-3000mm
  • Door leaf weights: 1 x 200kg, 2 x 180kg
  • Operating unit with 6 operating modes (automatic, reduced opening, exit, permanently open, closed, manual operation)

Options

  • Connection facilities for sensors complying with EN 16005
  • Electromechanical locking
  • Key switch
  • Mechanical emergency opening
  • Battery module for emergency operation
  • Can be set for low energy operation

Directives and standards met

  • The Machinery, Low Voltage and EMC Guidelines
  • RoHS
  • EN 16005 (1 million cycles with 4000 cycles/day)
  • EN 60035, EN 61000, EN ISO 13849

Declarations and approvals

  • CE
  • TÜV
