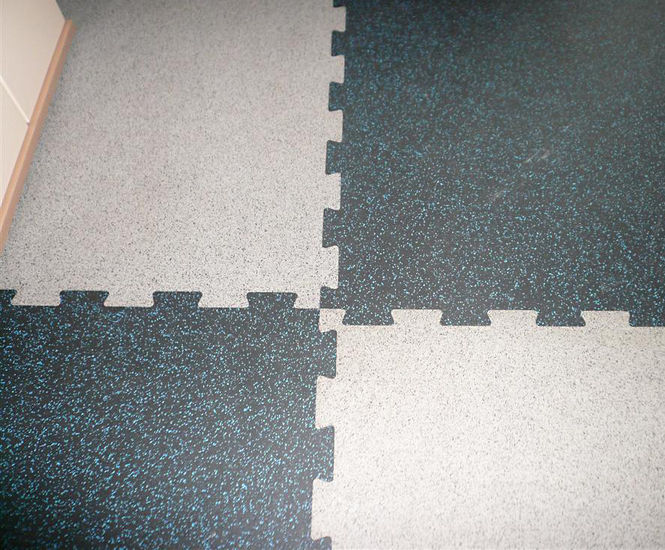

SPORTEC® Puzzlemats are rugged, easy-to-clean and water-repellent floor tiles for use in fitness and gym facilities, retail outlets, exhibitions halls, equipment storage rooms and ice sports stadiums.

Thanks to its excellent durability and simple installation without the need for adhesives, SPORTEC® Puzzlemat provides a great solution for temporary and permanent floors.

Puzzlemat is available in SPORTEC®Color and Purcolor.

Key benefits

  • Permanent and temporary floors

  • Excellent durability

  • Comfortable walking

  • Water-repellent and easy to clean

  • Simple installation, no need for adhesives

Technical data

Material
SPORTEC® Color: fine-grain recycled rubber tyre granules (black) with 15% EPDM colour granules, PU-elastomer bonded.

SPORTEC® Purcolor: 100% coloured EPDM granules with a share of 15% black EPDM granules, PU-elastomer bonded.

Size
1500mm (W) x 1000 (L) x 9mm (t)

Tolerances: width ± 1.5%, length ± 1.5%, thickness ± 0.3mm.

Material density
SPORTEC® Color: approx. 1,050kg/m3
SPORTEC® Purcolor: approx. 1,250kg/m3

Weight per m2
SPORTEC® Color: approx. 9.5kg/m2
SPORTEC® Purcolor: approx. 11.3kg/m2

Colour options
SPORTEC® Color-15: black with 15% green, blue, light grey, red, blue / grey, bright yellow.
SPORTEC® Purcolor: light grey, dark grey. Other colours are available on request.

Product testing
(Download product data sheet for full details)

Hardness: 60±5 Shore A (DIN 53505)
Abrasion: max. 200 mm3 (Puzzlemat Color), max. 45mmm3 (Puzzlemat Purcolor) (DIN 53516)
Sound reduction: 18 dB (at 8 mm) (DIN EN ISO 140-8:1998-03)
Slip resistance: R 10 (Puzzlemat Color), R 9 (Puzzlemat Purcolor) (DIN 51130)
Fire resistance: Efl (B2) (Puzzlemat Color), Cfl-­s1 (B1) (Puzzlemat Purcolor) (EN 13501-1)
Use with wheel chairs: for permanent use adapted (DIN EN 1307: 1997-06, test at 6mm and 8mm thickness)
