Manufactured as framed panels to custom sizes, these gratings are made for applications such as walkways, balcony decking, ventilation grilles, service platforms, escape stairs, and brise soleil.

Gratings are supplied with fixing clips for secure attachment to support structures.

Four main types are available: PL (pressure locked), PLX (pressure locked for heavy duty), PLXE (pressure locked with equal depth bars for aesthetic and shading), and EF (electrofused with plain or twisted bars).

Features and Benefits

  • Custom-sized framed panels for specific project requirements

  • Mesh sizes of 22mm or more for general purpose use

  • Multiple mesh and bar section options to meet loading, span, and ventilation needs

  • Hot-dip galvanised finish for corrosion resistance

  • Optional polyester powder coating in any RAL colour

  • Supplied with fixing clips for secure installation

  • Pressure locked and electrofused types for different structural and aesthetic requirements

Applications

  • Walkways

  • Balcony decking

  • Ventilation grilles

  • Service platforms

  • Escape stairs

  • Brise soleil

Options and variations

Type PL (pressure locked)

Pressed gratings manufactured exclusively from flat bars. They are available in the following mesh sizes (c/c): 22×22, 22×66, 25×66, 33×33, 33×66, 44×22, 66×22 and 66×33 mm. The bearing bar can vary from 25×2 to 150×5 mm and the transverse bar from 10×2 to 20×4 mm.

Type PLX (pressure locked)

Cross pressed gratings manufactured exclusively from flat bars and are recommended for areas which may be subjected to stress from heavy duty vehicles or as turning points. They are available in the following mesh sizes (c/c): 22×66, 33×33, 33×66, 25×66 and 66×33 mm. The bearing bar can vary from 30×4 to 150×6 mm and the transverse bar from 15×4 to 30×6 mm.

Type PLXE (pressure locked)

Cross pressed gratings manufactured exclusively from equal depth flat bars. This delivers the same egg-crate appearance from both above and below for a pleasing aesthetic. The flat bars also provide a greater level of shading for brise soleil applications. PLXE gratings are available in the following mesh sizes (c/c): 33×33, 44×44, 25×66 and 66×33 mm. The bars can vary in section from 25×2 mm to 70×5 mm.

Type-EF (electrofused)

Manufactured from flat bearing bars with either plain round or twisted transverse bars.

EF gratings with plain round bars are available in the following mesh sizes (c/c): 22×76, 22×38, 25×76 and 25×25 mm. The bearing bar can vary from 25×3 to 80×4 mm and the transverse bar from 4-6mm in diameter.

EF gratings with twisted round transverse bars for industrial applications are available in the following mesh sizes (c/c): 30×100, 30×50, 34×76 and 34×38 mm. The bearing bar can vary from 25×3 to 70×4 mm and the transverse bar from 4-6mm.

Materials

Manufactured from flat bars (PL, PLX, PLXE) and flat bearing bars with plain or twisted round bars (EF).

Finish

Hot-dip galvanised as standard. Polyester powder coating to any RAL colour available as an option.

Performance

Vehicle loading information:

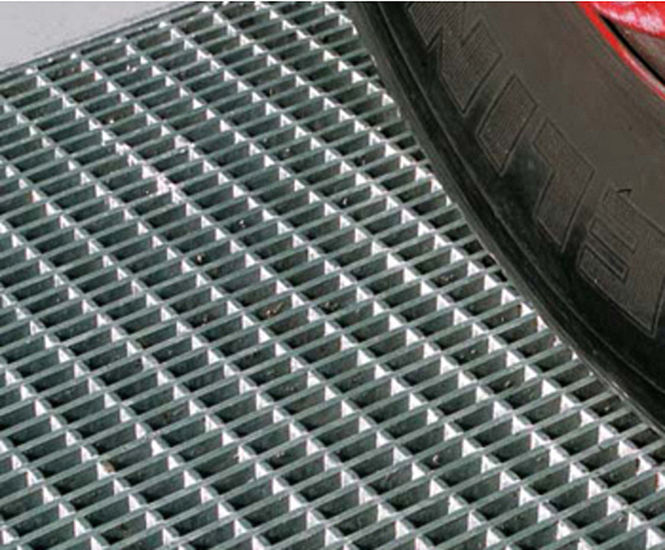

Class 2 – vehicle total mass 3,000kg, dynamic load 10kN on 200x200mm wheel imprint.
Class 3 – vehicle total mass 6,000kg, dynamic load 15kN (front axle), 30kN (rear axle) on 400x200mm wheel imprint.

Installation

Supplied with fixing clips to clamp panels to the support structure.
