Product name Trakkit Quiesce
Type Door openers / closers
Door type suitability Sliding doors
For use on Internal doors
Cabinets
Cupboards
Partitions
Wardrobes
Operation Manual
Installation Wall mounted
Grade Commercial
Residential

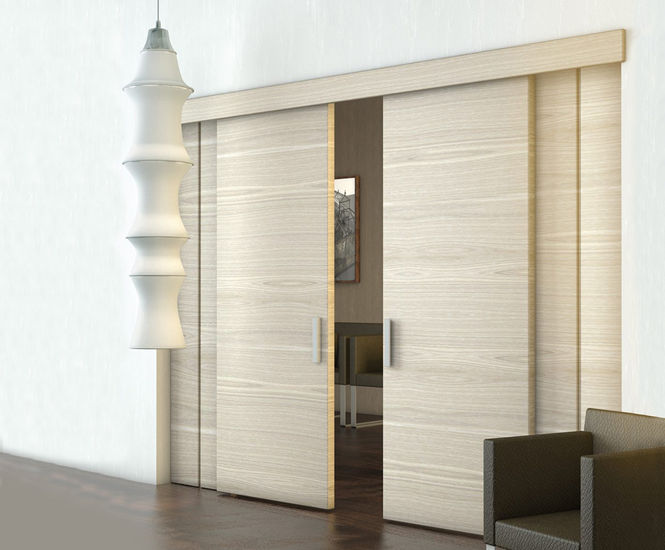

The Trakkit Quiesce top-hung straight sliding door runners kit is a fully adjustable and easy to install system that ensures a smooth running, quiet and smart doorset for for cabinets wardrobes, and other interior sliding doors.

Ideal for hotels and hospitals where quietness and ease of operation is paramount.

Features

  • Suitable for interior timber doors
  • Track can be joined by butting track together
  • Any number of doors can be used on single or multiple lines of track
  • Up to 19mm vertical adjustment
  • All moving parts are lubricated for life
  • Dove-tailed aluminium upper track face enables easy and wall-mounting with fixing brackets

Specifications

  • Door weight: 0-40 or 40-80kg
  • Top track length: 1.5 or 2.3m
  • Min door thickness: 25mm

Kit components

  • 1 x pre-drilled aluminium track
  • 2 x hangers
  • 2 x hanger support plates
  • 1 x door stops
  • 2 x nylon guide
  • 4 x side-fixing brackets (1.5m kit)
  • 6 x side-fixing brackets (2.3m kit)
  • 2 x fixing screw


The Trakkit Quiesce top-hung straight sliding door runners kit is a fully adjustable and easy to install system that ensures a smooth running, quiet and smart doorset for for cabinets wardrobes, and other interior sliding doors.

Ideal for hotels and hospitals where quietness and ease of operation is paramount.

Features

  • Suitable for interior timber doors
  • Track can be joined by butting track together
  • Any number of doors can be used on single or multiple lines of track
  • Up to 19mm vertical adjustment
  • All moving parts are lubricated for life
  • Dove-tailed aluminium upper track face enables easy and wall-mounting with fixing brackets

Specifications

  • Door weight: 0-40 or 40-80kg
  • Top track length: 1.5 or 2.3m
  • Min door thickness: 25mm

Kit components

  • 1 x pre-drilled aluminium track
  • 2 x hangers
  • 2 x hanger support plates
  • 1 x door stops
  • 2 x nylon guide
  • 4 x side-fixing brackets (1.5m kit)
  • 6 x side-fixing brackets (2.3m kit)
  • 2 x fixing screw





Downloads
  • Trakkit Quiesce sliding door gear kit
    Trakkit Quiesce sliding door gear kit
    3pp 3.37MB
    Download



Enquire
