Ceiling material Gypsum
Format Plank
Surface finish Tangent perforations, or non-perforated
Colour White - RAL 9003
Dimensions (l x w x t) 400x1200x12.5mm
Weight (kg/m2) 8.2 or 9
Sound absorption (alpha w) 0.75
Sound absorption (NRC) 0.70
Humidity resistance (%) 70
Light reflectance (%) 70.9 or 82.6
Fire reaction Full-perforated: A2-s1,d0; Non-perforated: B-s1,d0

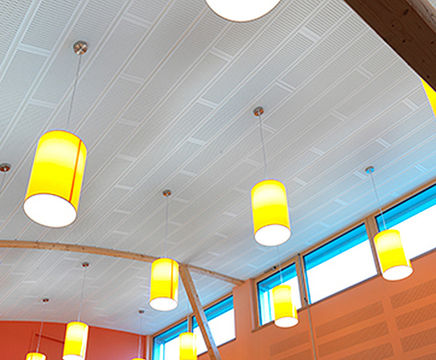

Visona is a versatile ceiling system. It features a double-grid system that allows a wide variety of design options.

Visona allows the creation of customised lighting, working with the shape of the room to provide a high level of lighting comfort and interesting designs. comfort and shape the room through light design. A holistic approach can be taken when designing the room by incorporating all the architectural elements of the interior.

Specifications:

  • White painted gypsum tile
  • Perforations: 14x4mm oval holes or unperforated
  • Dimensions: 1200x400x12.5mm, for S24 double grid system


Visona is a versatile ceiling system. It features a double-grid system that allows a wide variety of design options.

Visona allows the creation of customised lighting, working with the shape of the room to provide a high level of lighting comfort and interesting designs. comfort and shape the room through light design. A holistic approach can be taken when designing the room by incorporating all the architectural elements of the interior.

Specifications:

  • White painted gypsum tile
  • Perforations: 14x4mm oval holes or unperforated
  • Dimensions: 1200x400x12.5mm, for S24 double grid system
