Product name ACO ROOFBLOXX
System components Water storage
Roof type Flat roofs
Roof terraces




ACO RoofBloxx is a complete roof attenuation system for blue, green and blue/green roofs. It enables engineers to create a drainage platform for multi-functional open green spaces at roof or podium level.

The system comprises a shallow, high-strength, adjustable geocellular storage void and roof outlet flow control system. ACO RoofBloxx is fully compatible with ACO roof outlets, downpipes and surface water drainage systems.

When combined with the ACO Blue Roof Flow Restrictor, ACO RoofBloxx units can store rainwater at source to control surface water run-off. The system can also permanently store a percentage of the captured water for use in passive irrigation systems.

Hydraulic design guidance is provided as standard by ACO’s in-house technical design team.

  • Modular polypropylene construction
  • Stackable geocellular units (in 40mm increments)
  • Three unit sizes (85mm, 125mm and 165mm depth)
  • Units interlock in any orientation
  • Internal void ratio of 90%
  • Top surface void ratio of 53%
  • ACO Blue Roof Flow Restrictor works with ACO vertical, and 45 and 90 degree roof outlets
  • Shallow, high strength design (800KN/m²)


ACO RoofBloxx is a complete roof attenuation system for blue, green and blue/green roofs. It enables engineers to create a drainage platform for multi-functional open green spaces at roof or podium level.

The system comprises a shallow, high-strength, adjustable geocellular storage void and roof outlet flow control system. ACO RoofBloxx is fully compatible with ACO roof outlets, downpipes and surface water drainage systems.

When combined with the ACO Blue Roof Flow Restrictor, ACO RoofBloxx units can store rainwater at source to control surface water run-off. The system can also permanently store a percentage of the captured water for use in passive irrigation systems.

Hydraulic design guidance is provided as standard by ACO’s in-house technical design team.

  • Modular polypropylene construction
  • Stackable geocellular units (in 40mm increments)
  • Three unit sizes (85mm, 125mm and 165mm depth)
  • Units interlock in any orientation
  • Internal void ratio of 90%
  • Top surface void ratio of 53%
  • ACO Blue Roof Flow Restrictor works with ACO vertical, and 45 and 90 degree roof outlets
  • Shallow, high strength design (800KN/m²)





Enquire



Also by ACO Water Management

ACO Water Management address and contact details

ACO Water Management
ACO Business Park
Hitchin Road
Shefford
SG17 5TE
Tel: 01462 816666
Fax: 01462 815895
View on map

Follow ACO Water Management

Not found what you're looking for? View other options

Ask ACO Water Management about

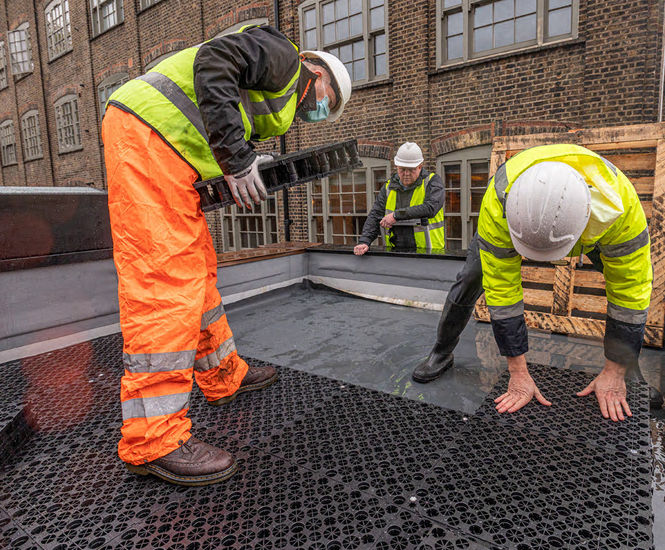

ACO Roofbloxx attenuation system for green / blue roofs
