Frame material Timber / wood
Wall material Timber / wood
Wall cladding / finish Timber faced




Specifications

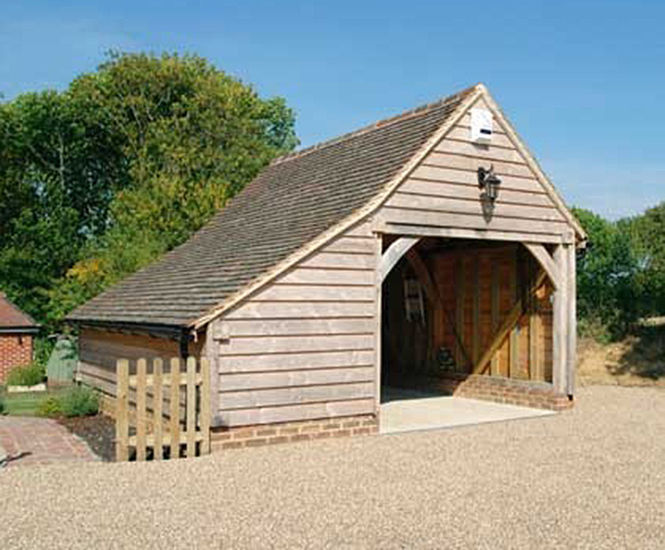

  • 1-bay garage guide design
  • External footprint: 4.375m wide x 5.6m deep
  • Gable roofline
  • Features a side aisle
  • Main roof pitch: 40°
  • Catslide pitch: 37°
  • Ridge height: 3.510m

Guide designs

RW1GA is a guide design for a standard 1-bay garage with a gable style roof. Round Wood's garage guide designs can be modified to any requirement, including altering the footprint to suit the size of a pitch. Specifications will be required regarding weatherboard, bricks, tiles and cross sections.

Weatherboard options

  • Sawn featheredge softwood cladding ex.2 00 x 38mm profile, fixed using a 50mm overlap
  • Square edge oak weatherboarding 200 x 18mm profile fixed using 50mm overlap

Bricks

Extra wide bricks manufactured locally are designed to fit flush to the soleplates. They can also be used in other projects not suited to a standard brick. Their reddish / blue colour means they will blend sympathetically with all traditional buildings. Please inform us, however, if you wish to use a different brick type as the design will have to modified accordingly.

Tiling

Tile choice is extremely important, particularly if planning issues require the garage to remain in keeping with the local vernacular. A range of reclaimed clay tiles is available, in varying colours and finishes, from £0.28p each. Cedar shingles are also stocked as an option, or client's can source their own tiles.


Specifications

  • 1-bay garage guide design
  • External footprint: 4.375m wide x 5.6m deep
  • Gable roofline
  • Features a side aisle
  • Main roof pitch: 40°
  • Catslide pitch: 37°
  • Ridge height: 3.510m

Guide designs

RW1GA is a guide design for a standard 1-bay garage with a gable style roof. Round Wood's garage guide designs can be modified to any requirement, including altering the footprint to suit the size of a pitch. Specifications will be required regarding weatherboard, bricks, tiles and cross sections.

Weatherboard options

  • Sawn featheredge softwood cladding ex.2 00 x 38mm profile, fixed using a 50mm overlap
  • Square edge oak weatherboarding 200 x 18mm profile fixed using 50mm overlap

Bricks

Extra wide bricks manufactured locally are designed to fit flush to the soleplates. They can also be used in other projects not suited to a standard brick. Their reddish / blue colour means they will blend sympathetically with all traditional buildings. Please inform us, however, if you wish to use a different brick type as the design will have to modified accordingly.

Tiling

Tile choice is extremely important, particularly if planning issues require the garage to remain in keeping with the local vernacular. A range of reclaimed clay tiles is available, in varying colours and finishes, from £0.28p each. Cedar shingles are also stocked as an option, or client's can source their own tiles.
