Suitability Aerobics
Ball sports
Dance
Gyms
Performance
Installation Permanent
Elasticity Combined elastic
Sub-layer construction Continuous foam / rubber backing
Surface finish Resilient flooring




SPORTEC® Splash is a rugged, easy-to-clean and water-repellent floor covering material for use in fitness and gym facilities, retail outlets, exhibition halls, equipment storage rooms and ice sports stadiums.

It offers the same properties and application options as SPORTEC® Color. Thanks to the incorporation of large and small EPDM colour granules, SPORTEC® Splash floor covering are available in an even greater range of colours and finishes.

Key benefits

  • Excellent durability
  • High resistance to mechanical wear
  • Large range of colours and hues
  • Comfortable walking
  • Effective impact and noise reduction
  • Water-repellent and easy to clean
  • Complies with VOC emission requirements for indoor air
  • Efl (B2) fire resistant

Technical data

Material
Fine-grain recycled rubber tyre granules (black) with coloured EPDM coloured granules, PU-elastomer bonded.

Roll size
Width
1500mm

Length and thickness
10m (L) x 12mm (t)
12m (L) x 10mm (t)
15m (L) x 8mm (t)
20m (L) x 6mm (t)
24m (L) x 5mm (t)
30m (L) x 4mm (t)
Other thicknesses on request.

Tolerances: width ± 1.5%, length ± 1.5%, thickness ± 0.3mm.

Material density
Approx. 1,050kg/m3

Material weight per m2
At 4mm thickness, approx. 4.2 kg/m²
At 5mm thickness, approx. 5.3 kg/m²
At 6mm thickness, approx. 6.3 kg/m²
At 8mm thickness, approx. 8.4 kg/m²
At 10mm thickness, approx. 10.5 kg/m²
At 12mm thickness, approx. 12.6 kg/m²

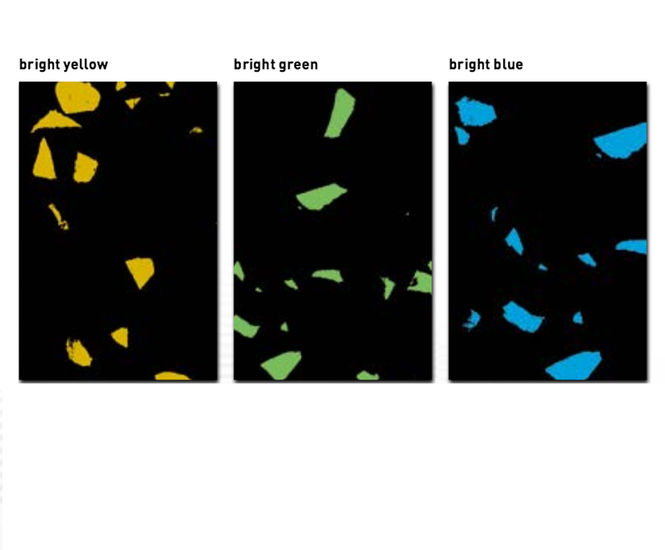

Colour options
Black with: bright blue, bright red, bright green, bright yellow or bright orange
Other colours available on request.

Product testing
(download product data sheet for full details)

Wear hardness: approx. 4.0 MPa at 5mm thickness (DIN 53577)
Hardness: 60±5 Shore A (DIN 53505)
Abrasion: max. 200 mm3 (DIN 53516)
Sound reduction: 17 dB (at 6 mm) and 18 dB (at 8 mm) (DIN EN ISO 140-8:1998-03)
Slip resistance: R 10 (DIN 51130)
Fire resistance: Efl (B2) (EN 13501-1)
Castor chair suitability: for permanent use adapted (DIN EN 1307: 1997-06, test at 6mm and 8mm thickness)
VOC emission rating: AFSSET rating A+, DIBt and AgBB compliant


SPORTEC® Splash is a rugged, easy-to-clean and water-repellent floor covering material for use in fitness and gym facilities, retail outlets, exhibition halls, equipment storage rooms and ice sports stadiums.

It offers the same properties and application options as SPORTEC® Color. Thanks to the incorporation of large and small EPDM colour granules, SPORTEC® Splash floor covering are available in an even greater range of colours and finishes.

Key benefits

  • Excellent durability
  • High resistance to mechanical wear
  • Large range of colours and hues
  • Comfortable walking
  • Effective impact and noise reduction
  • Water-repellent and easy to clean
  • Complies with VOC emission requirements for indoor air
  • Efl (B2) fire resistant

Technical data

Material
Fine-grain recycled rubber tyre granules (black) with coloured EPDM coloured granules, PU-elastomer bonded.

Roll size
Width
1500mm

Length and thickness
10m (L) x 12mm (t)
12m (L) x 10mm (t)
15m (L) x 8mm (t)
20m (L) x 6mm (t)
24m (L) x 5mm (t)
30m (L) x 4mm (t)
Other thicknesses on request.

Tolerances: width ± 1.5%, length ± 1.5%, thickness ± 0.3mm.

Material density
Approx. 1,050kg/m3

Material weight per m2
At 4mm thickness, approx. 4.2 kg/m²
At 5mm thickness, approx. 5.3 kg/m²
At 6mm thickness, approx. 6.3 kg/m²
At 8mm thickness, approx. 8.4 kg/m²
At 10mm thickness, approx. 10.5 kg/m²
At 12mm thickness, approx. 12.6 kg/m²

Colour options
Black with: bright blue, bright red, bright green, bright yellow or bright orange
Other colours available on request.

Product testing
(download product data sheet for full details)

Wear hardness: approx. 4.0 MPa at 5mm thickness (DIN 53577)
Hardness: 60±5 Shore A (DIN 53505)
Abrasion: max. 200 mm3 (DIN 53516)
Sound reduction: 17 dB (at 6 mm) and 18 dB (at 8 mm) (DIN EN ISO 140-8:1998-03)
Slip resistance: R 10 (DIN 51130)
Fire resistance: Efl (B2) (EN 13501-1)
Castor chair suitability: for permanent use adapted (DIN EN 1307: 1997-06, test at 6mm and 8mm thickness)
VOC emission rating: AFSSET rating A+, DIBt and AgBB compliant
